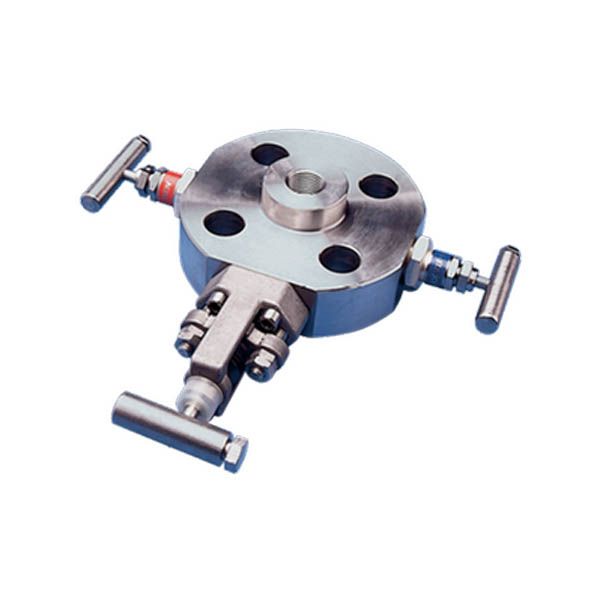

HD33MKHSS-161L-047B-LF(P)-LT -SS-SG-API598-T2 50NB CL1500 R/F 15NPTF MONO DB&B316/G AGCO

Brand: Anderson Greenwood
Item Code: 06HSS161L047B-KX
Instrumentation Models HD33M-HD33MK Primary Isolation
Integrally forged, one piece slimline Monoflange double block and bleed assemblies for primary isolation of pressure take-offs, where the valve is mounted directly to the vessel or process pipe
Product Files

Features

  • One-piece ultra-slim forged body combines a compact design with strength and reduced potential leak paths compared to conventional designs.
  • Flanged inlet connections available in a choice of sizes and ratings to suit each application.
  • Outside screw and yoke (OS&Y) needle type globe valve with investment cast yoke and bolted bonnet provide high mechanical strength and reliability on primary isolation service.
  • Heavy duty needle type globe valve ensuring bubble-tight shut-off on isolation or venting service.
  • Gauge adaptors allow flexible positioning of gauges and instruments with a choice of designs available (optional).
  • Firesafe design to meet API 607, BS6755 Part 2 (optional).
Products specifications
Material / GradeSS316
Valve TypeMonoflange
Nominal Bore50NB (2")
Working Pressure10,000 PSI (689 barg)
Piping ClassCL1500

Attachments

Features

  • One-piece ultra-slim forged body combines a compact design with strength and reduced potential leak paths compared to conventional designs.
  • Flanged inlet connections available in a choice of sizes and ratings to suit each application.
  • Outside screw and yoke (OS&Y) needle type globe valve with investment cast yoke and bolted bonnet provide high mechanical strength and reliability on primary isolation service.
  • Heavy duty needle type globe valve ensuring bubble-tight shut-off on isolation or venting service.
  • Gauge adaptors allow flexible positioning of gauges and instruments with a choice of designs available (optional).
  • Firesafe design to meet API 607, BS6755 Part 2 (optional).
