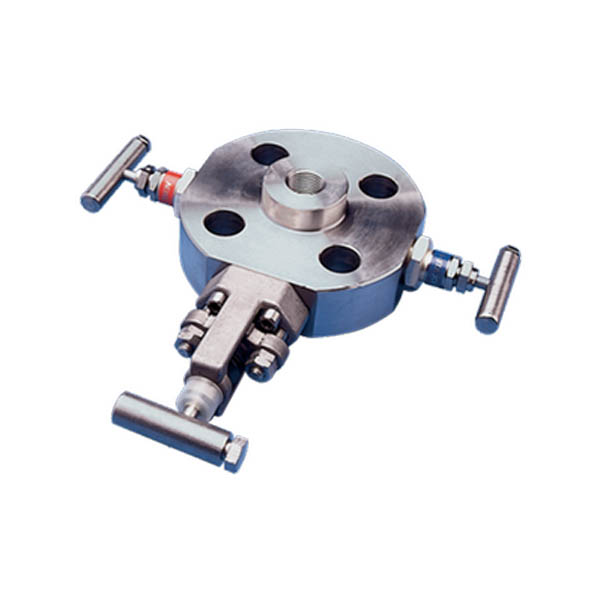

HD33MKVSS-163M-KFGTX-AT(V)-AL- SG-SSE-YOKG 50NB RTJ CL2500 X KFGTX MONOFLANGE AGCO 316

Brand: Anderson Greenwood
Item Code: 06VSS163M047B-BV
Instrumentation Models HD33M-HD33MK Primary Isolation
Integrally forged, one piece slimline Monoflange double block and bleed assemblies for primary isolation of pressure take-offs, where the valve is mounted directly to the vessel or process pipe
Product Files
AGCO

Features

  • One-piece ultra-slim forged body combines a compact design with strength and reduced potential leak paths compared to conventional designs.
  • Flanged inlet connections available in a choice of sizes and ratings to suit each application.
  • Outside screw and yoke (OS&Y) needle type globe valve with investment cast yoke and bolted bonnet provide high mechanical strength and reliability on primary isolation service.
  • Heavy duty needle type globe valve ensuring bubble-tight shut-off on isolation or venting service.
  • Gauge adaptors allow flexible positioning of gauges and instruments with a choice of designs available (optional).
  • Firesafe design to meet API 607, BS6755 Part 2 (optional).
Products specifications
Material / GradeSS316
Nominal Bore50NB (2")
Working Pressure10,000 PSI (689 barg)
Valve TypeMonoflange
Piping ClassCL2500
