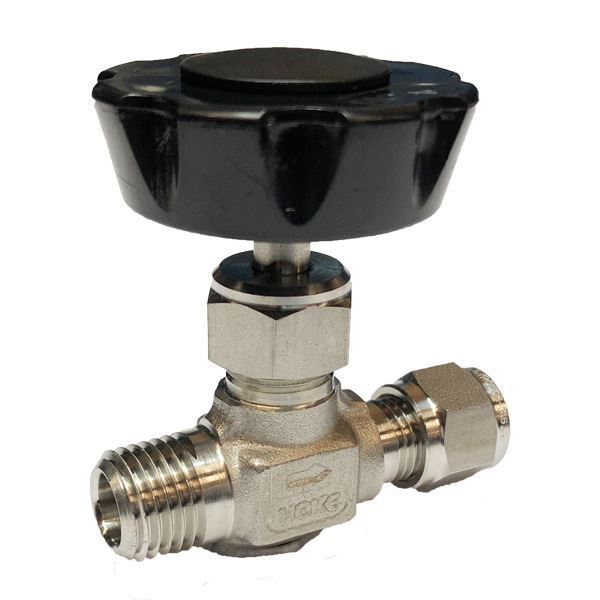

8NPT MALE X 6.3OD TUBE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM

Brands: HOKE , Gyrolok - Crane
Item Code: 3712H4Y
Delivery date: 1-2 days
3700 Series - Forged Body, Integral Bonnet Needle Valve
Offered in four different body materials, this group of valves can handle a wide range of general purpose liquid and gas applications. Six types of stem tips are available, including two styles of vee-points. All models can be ordered for panel mounting.
Technical Information

Typical Applications

  • Instrument air lines
  • Sampling
  • Gas chromatography
  • Test stands
  • Cylinder valves

Safety

  • Integral bonnet provides diff erential thread pitch between stem threads and packing nut thread preventing accidental stem removal

Stem tip options

  • A choice of PCTFE, metal, vee-point, blunt veepoint, or regulating stem tips

Helps eliminate fugitive emissions

  • Dyna-Pak packing provides a leak-tight seal with low operating torque in deep vacuum or high pressure applications

Dependability

  • All valves are tested for bubble-tight leakage at both seat and packing

Installation variety

  • Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections

Handle options

  • Color-coded handles are available for identifying system fluids

Panel mounting available

  • All models can be ordered for panel mounting

Easy maintenance

  • All models can be panel mounted without packing disruption. Packing can be adjusted without removal from panel
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeNPT MALE
Working Pressure5,000 PSI (345 barg)
Connection Type 2GYROLOK
Connection Size 26.3 (1/4")

Attachments

Typical Applications

  • Instrument air lines
  • Sampling
  • Gas chromatography
  • Test stands
  • Cylinder valves

Safety

  • Integral bonnet provides diff erential thread pitch between stem threads and packing nut thread preventing accidental stem removal

Stem tip options

  • A choice of PCTFE, metal, vee-point, blunt veepoint, or regulating stem tips

Helps eliminate fugitive emissions

  • Dyna-Pak packing provides a leak-tight seal with low operating torque in deep vacuum or high pressure applications

Dependability

  • All valves are tested for bubble-tight leakage at both seat and packing

Installation variety

  • Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections

Handle options

  • Color-coded handles are available for identifying system fluids

Panel mounting available

  • All models can be ordered for panel mounting

Easy maintenance

  • All models can be panel mounted without packing disruption. Packing can be adjusted without removal from panel
  • Special High Tolerance NPT Thread
Related products
Picture of 6.3OD TUBE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM
3712G4Y

6.3OD TUBE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM

3700 Series - Forged Body, Integral Bonnet Needle Valve
Offered in four different body materials, this group of valves can handle a wide range of general purpose liquid and gas applications. Six types of stem tips are available, including two styles of vee-points. All models can be ordered for panel mounting.
Technical Information
Picture of 6.3OD TUBE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM PANEL MOUNT
D3712G4Y

6.3OD TUBE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM PANEL MOUNT

3700 Series - Forged Body, Integral Bonnet Needle Valve - PANEL MOUNT
Offered in four different body materials, this group of valves can handle a wide range of general purpose liquid and gas applications. Six types of stem tips are available, including two styles of vee-points. All models can be ordered for panel mounting.
Picture of 8NPT MALE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM
3712M4Y

8NPT MALE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM

3700 Series - Forged Body, Integral Bonnet Needle Valve
Offered in four different body materials, this group of valves can handle a wide range of general purpose liquid and gas applications. Six types of stem tips are available, including two styles of vee-points. All models can be ordered for panel mounting.
Technical Information

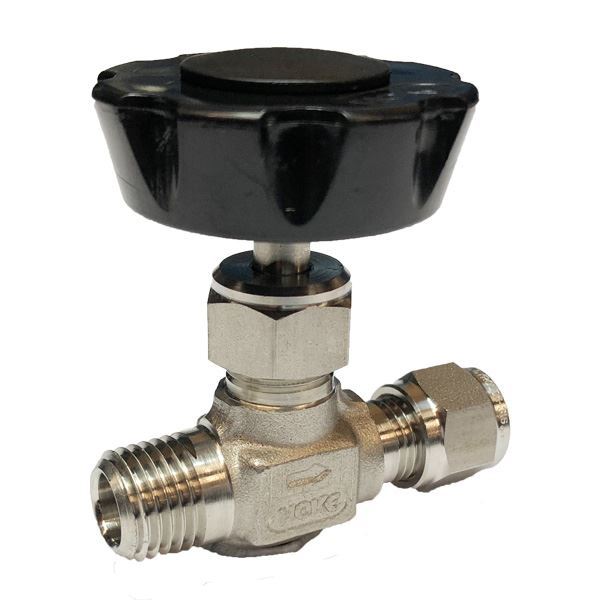

Picture of 8NPT MALE X 6.3OD TUBE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM
