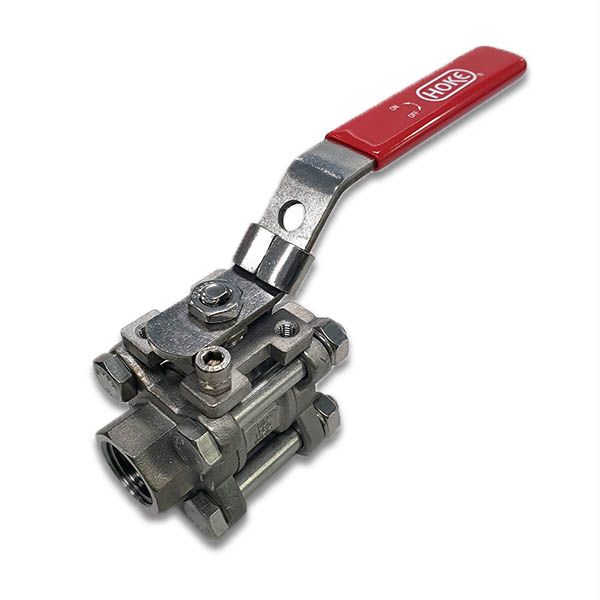

20NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

Brand: HOKE
Item Code: 7520F12Y-RH-AX
3-Piece Full Port Ball Valve, NPT Threaded Ends, 3/4" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
  • Strengthened construction fully complied with ASME/ANSI B16.34 secures 3000 psi/2000 psi working pressure rating.
  • Fully encapsulated bolts are protected from the environment for extended service life.
  • Live-loaded packing gland design for self-adjustment of packing compression.
  • Equalized cavity pressure hole drilled in the stem slot of ball.
  • Bottom-loaded blow-out proof stem.
  • Pressure equalizing seats
  • Basic design complies with ANSI B16.34.
  • Tested according to API 598
  • High tolerance NPT Thread Specification
  • Part number and brand embossed on body
  • Low Pressure Design for Non-Critical Service
  • Includes High Tolerance NPT Thread
  • Stainless Steel Construction
  • Locking Handles
Products specifications
Valve TypeBall
Material / GradeSS316
Connection Size19.1 (3/4")
Connection TypeNPT FEMALE
Working Pressure1000WOG
Valve Body3-PIECE

Attachments

  • Strengthened construction fully complied with ASME/ANSI B16.34 secures 3000 psi/2000 psi working pressure rating.
  • Fully encapsulated bolts are protected from the environment for extended service life.
  • Live-loaded packing gland design for self-adjustment of packing compression.
  • Equalized cavity pressure hole drilled in the stem slot of ball.
  • Bottom-loaded blow-out proof stem.
  • Pressure equalizing seats
  • Basic design complies with ANSI B16.34.
  • Tested according to API 598
  • High tolerance NPT Thread Specification
  • Part number and brand embossed on body
  • Low Pressure Design for Non-Critical Service
  • Includes High Tolerance NPT Thread
  • Stainless Steel Construction
  • Locking Handles
Products specifications
Valve TypeBall
Material / GradeSS316
Connection Size19.1 (3/4")
Connection TypeNPT FEMALE
Working Pressure1000WOG
Valve Body3-PIECE
