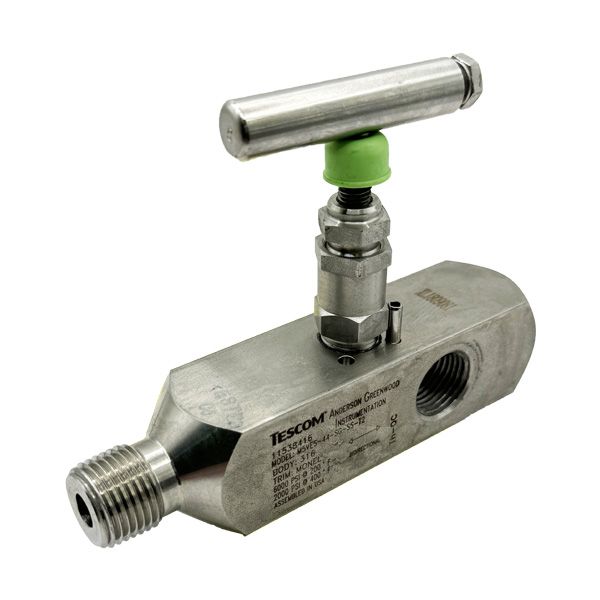

M5VES-44-SS-SG-T2 15NPT M/F (x3) 6,000PSI MULTIPORT GAUGE VALVE TEFLON PEEK SG ALL316 T2

Item Code: M5VES-44-KD
M5 valves allow for versatile vertical or horizontal installation positioning of gauges or pressure switches without requiring additional penetration of the main piping.

Features

  • Cost savings through minimized components and process penetrations for multiple instrument installations with reduced possible leak points.
  • Compact design minimizes space requirements; low weight improves connection strength and reduces gauge whip.
  • Long body option allows up to 4” (102 mm) pipe insulation.
  • Replaceable soft seat and can operate in dirty service with repetitive bubble-tight shutoff.
  • Repairable metal seat can be resurfaced without removing the valve from the line.
  • Ball end stem eliminates seat galling, provides bubble-tight shutoff and long life. Hardened, non-rotating ball ensures perfect alignment closure.
  • Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
Products specifications
Material / GradeSS316
Valve TypeGauge
Working Pressure6,000 PSI (414 barg)
End Connection Type 1NPT MALE
End Connection Size 112.7 (1/2")
End Connection Type 2NPT FEMALE
End Connection Size 212.7 (1/2")
End Connection Type 3NPT FEMALE
End Connection Size 312.7 (1/2")
End Connection Type 4NPT FEMALE
End Connection Size 412.7 (1/2")
