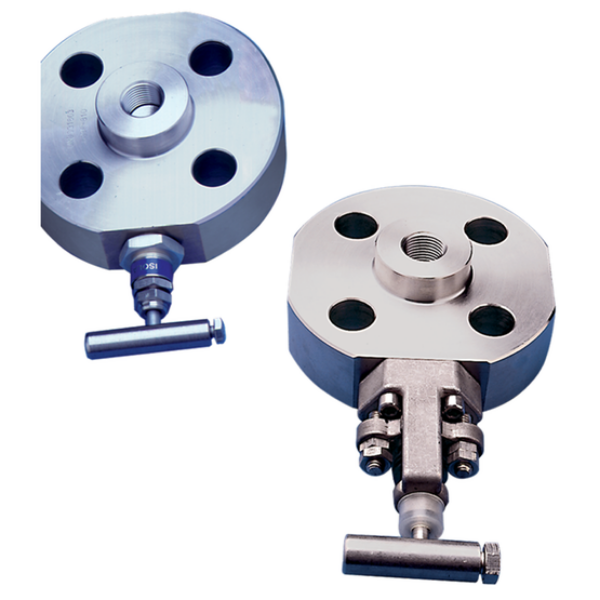

HD7MHCS-161A-047B-SS-QGC1 DN50 CL150 MONOFLANGE 316 TRIM GRAPHITE PACK A105N BODY

Brand: Anderson Greenwood
Item Code: 01HCS161A047B-9Z
Suitable for applications including isolation, sampling, pressure and level measurement. Instruments may be mounted directly to the valve outlet or remotely with gauge lines/impulse pipe work.
Product Files

Features

  • One-piece ultra-slim forged body combines a compact design with strength and reduced potential leak paths compared to conventional designs.
  • Flanged inlet connections available in a choice of sizes and ratings to suit each application.
  • Outside screw and yoke (OS&Y) needle type globe valve with investment cast yoke and bolted bonnet provide high mechanical strength and reliability on primary isolation service.
  • Heavy duty needle type globe valve ensuring bubble-tight shut-off on isolation or venting service.
  • Gauge adaptors allow flexible positioning of gauges and instruments with a choice of designs available (optional).
  • Firesafe design to meet API 607, BS6755 Part 2 (optional).
Products specifications
Material / GradeSS316
Valve TypeMonoflange
Nominal Bore50NB (2")
Working Pressure10,000 PSI (689 barg)
Piping ClassCL150

Attachments

Features

  • One-piece ultra-slim forged body combines a compact design with strength and reduced potential leak paths compared to conventional designs.
  • Flanged inlet connections available in a choice of sizes and ratings to suit each application.
  • Outside screw and yoke (OS&Y) needle type globe valve with investment cast yoke and bolted bonnet provide high mechanical strength and reliability on primary isolation service.
  • Heavy duty needle type globe valve ensuring bubble-tight shut-off on isolation or venting service.
  • Gauge adaptors allow flexible positioning of gauges and instruments with a choice of designs available (optional).
  • Firesafe design to meet API 607, BS6755 Part 2 (optional).
