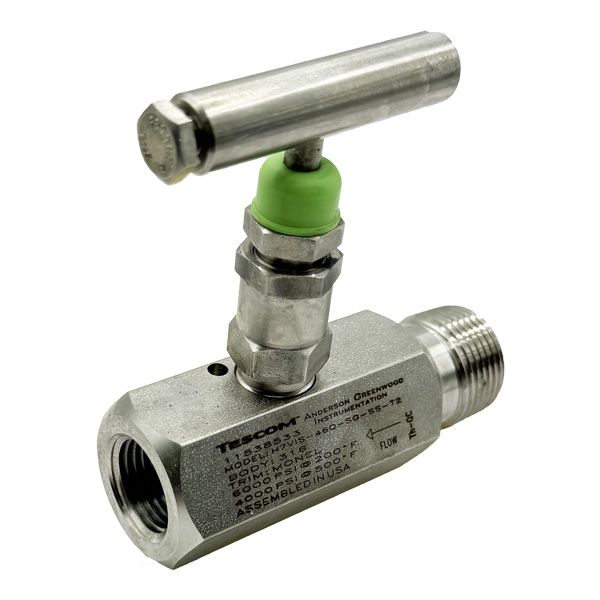

H7VIS-46Q-SS-SG-T2 20X15NPT M/F 6,000PSI HAND VALVE 4.8ORF TEFLON METAL SG ALL 316 T2

Brand: Anderson Greenwood
Item Code: H7VIS-46Q-KD
H7 series valves are designed for safe, repetitive bubble-tight closure, simple maintenance and a long, trouble-free life.
Product Files
AGCO

Features

  • Ball end stem eliminates seat galling, provides bubble-tight shutoff and long life. Hardened, non-rotating ball ensures perfectly aligned closure.
  • Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable PTFE packing decreases replacement downtime and increases valve life.
  • Dust cover protects stem from lubricant contamination.
  • Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS stem prevents galling or freezing of stem threads. CS valves use a 303 SS stem for 'hard-to-soft' contact to prevent galling.
  • Rolled stem and bonnet threads provide additional strength.
  • Mirror stem finish in the packing area provides smooth operation and extends packing life.
  • Metal-to-metal body-to-bonnet seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile breakage and gives a reliable seal point.
  • Metal seat can be resurfaced for longer valve life.
Products specifications
Material / GradeSS316
Valve TypeHand & Needle
End Connection Type 1NPT MALE
End Connection Size 119.1 (3/4")
End Connection Type 2NPT FEMALE
End Connection Size 212.7 (1/2")
Working Pressure6,000 PSI (414 barg)
