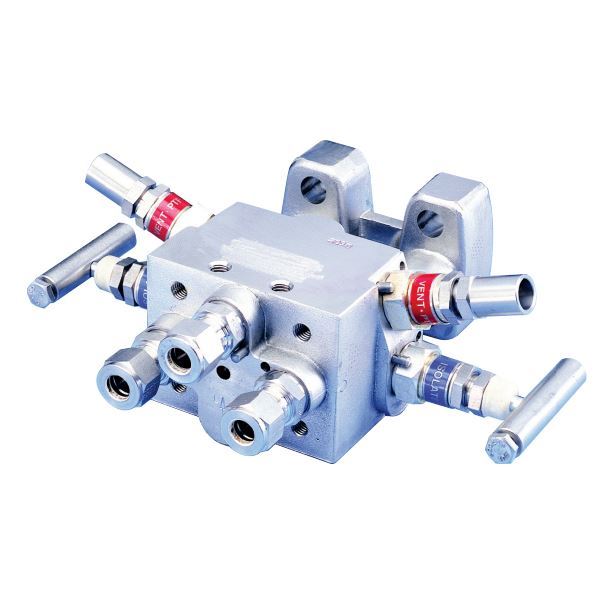

AS4TVIS-2NPT/1-SG-GY-I-WP DP MANIFOLD BLOCK 4-VALVE GYROLOK FITT ALL 316 AGCO WOP

Brand: Anderson Greenwood
Item Code: AS4TVIS-2NPT/1-E
Delivery date: 1-2 days
A single isolate/vent block for applications with pressure transmitters of the differential body design.
Product Files
AGCO

General Application

The AS4 TVIS 2/4 is part of the Anderson Greenwood Modular Mounting System and used for pressure measurement applications with pressure transmitters of the differential body design.

Features

  • Compact design provides lower installation costs and fewer potential leak points.
  • Parallel thread metal-to-metal seals on process and vent connections.
  • Equalize and vent valves fitted with anti-tamper facility.
  • T-bar handle on isolate bonnet assembly.
  • All bonnet assemblies color coded and function identified.
  • Optional factory installed tube fittings in process and vent ports.
  • Readily accepts a full range of accessories.
Products specifications
Valve TypeManifold
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeGYROLOK

Attachments

General Application

The AS4 TVIS 2/4 is part of the Anderson Greenwood Modular Mounting System and used for pressure measurement applications with pressure transmitters of the differential body design.

Features

  • Compact design provides lower installation costs and fewer potential leak points.
  • Parallel thread metal-to-metal seals on process and vent connections.
  • Equalize and vent valves fitted with anti-tamper facility.
  • T-bar handle on isolate bonnet assembly.
  • All bonnet assemblies color coded and function identified.
  • Optional factory installed tube fittings in process and vent ports.
  • Readily accepts a full range of accessories.
