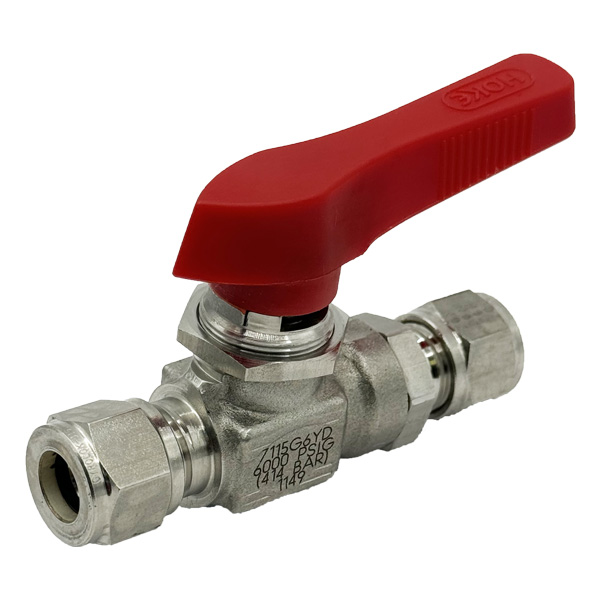

9.5OD TUBE 6000PSI BALL VALVE FORGED BODY 316 FLOMITE DELTA PACK BI-DIR

Brands: HOKE , Gyrolok - Crane
Item Code: 7115G6YD
Delivery date: 1-2 days
Bi-directional, High Cycle, Zero Leak, 2-way Ball Valves - D Series
Hoke D series valves exceed 50,000 cycles.
Technical Information

Delta stem seal (D & DL)

  • Improved cycle life
  • No packing adjustment required
  • Rated to 6000 psig (414 bar)
  • Low operating torque for ease of operation

Choice of end-fittings for versatility

  • 70 Series - welded
  • 71 Series - gasketed

Live-loaded seats (DL & TL)

  • Compensates for wear and thermal cycling with zero leakage, providing excellent durability and reliability.
  • Ensures leak-tight performance over entire pressure range simplifying ball valve specification and installation, saving time and expense.

Static-grounded stem

  • Prevents static discharge for added safety

Quarter-turn handle

  • Quick on/off simplifies operation and saves time.
  • Directional handle provides quick visual indication of orifice, improves operator efficiency and safety.
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeBall
MaterialSS316
Working Pressure6,000 PSI (414 barg)
End Connection Type 1GYROLOK
End Connection Size 19.5 (3/8")
End Connection Type 2GYROLOK
End Connection Size 29.5 (3/8")

Attachments

Delta stem seal (D & DL)

  • Improved cycle life
  • No packing adjustment required
  • Rated to 6000 psig (414 bar)
  • Low operating torque for ease of operation

Choice of end-fittings for versatility

  • 70 Series - welded
  • 71 Series - gasketed

Live-loaded seats (DL & TL)

  • Compensates for wear and thermal cycling with zero leakage, providing excellent durability and reliability.
  • Ensures leak-tight performance over entire pressure range simplifying ball valve specification and installation, saving time and expense.

Static-grounded stem

  • Prevents static discharge for added safety

Quarter-turn handle

  • Quick on/off simplifies operation and saves time.
  • Directional handle provides quick visual indication of orifice, improves operator efficiency and safety.
  • Special High Tolerance NPT Thread
Related products
Picture of 9.5OD TUBE 6000PSI BALL VALVE FORGED BODY 316 FLOMITE Picture of 9.5OD TUBE 6000PSI BALL VALVE FORGED BODY 316 FLOMITE
7115G6Y

9.5OD TUBE 6000PSI BALL VALVE FORGED BODY 316 FLOMITE

2-way Integral Panel Mount Ball Valves
Used for quick on-off service with a visual indication of flow, HOKE’s 2-way ball valves offer orifice sizes up to 0.25” (6.4mm). Flomite valves feature a floating ball design, encapsulated replaceable seats and check seals to ensure leak-tight service and extended service life.
Technical Information
Picture of 9.5OD TUBE 6000PSI BALL VALVE FORGED BODY 316 FLOMITE DELTA PACKING UNI-DIR Picture of 9.5OD TUBE 6000PSI BALL VALVE FORGED BODY 316 FLOMITE DELTA PACKING UNI-DIR
7115G6YDL

9.5OD TUBE 6000PSI BALL VALVE FORGED BODY 316 FLOMITE DELTA PACKING UNI-DIR

Uni-directional, High Cycle, Zero Leak, 2-way Ball Valves - DL Series
Hoke D series valves exceed 50,000 cycles.
Technical Information
Picture of 9.5OD TUBE 3000PSI BALL VALVE FORGED BODY BRASS FLOMITE
7115G6B

9.5OD TUBE 3000PSI BALL VALVE FORGED BODY BRASS FLOMITE

2-way Integral Panel Mount Ball Valves
Used for quick on-off service with a visual indication of flow, HOKE’s 2-way ball valves offer orifice sizes up to 0.25” (6.4mm). Flomite valves feature a floating ball design, encapsulated replaceable seats and check seals to ensure leak-tight service and extended service life.
Technical Information
Products specifications
Valve TypeBall
MaterialSS316
Working Pressure6,000 PSI (414 barg)
End Connection Type 1GYROLOK
End Connection Size 19.5 (3/8")
End Connection Type 2GYROLOK
End Connection Size 29.5 (3/8")
