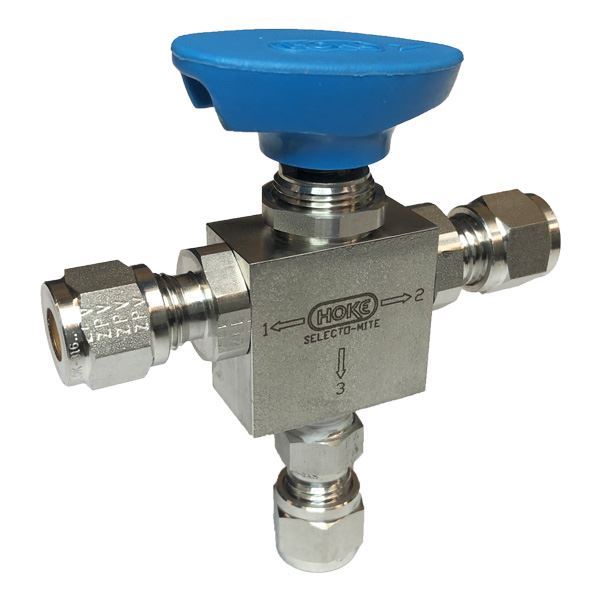

9.5OD TUBE 500PSI BALL VALVE 3-WAY 316 SELECTOMITE

Brand: HOKE
Item Code: 7165G6Y
Delivery date: 1-2 days
Selectomite 3-way ball valves use 180° operation for diverting flow from one line to another. The handle points to the side port in use; when perpendicular to the side ports, it indicates the shutoff position.
Technical Information

Typical Applications

  • Instrument air lines
  • Sampling systems
  • 2-way gauge readout of line pressure
  • Manual cylinder actuation

Features and Benefits

  • Handle points to port in use or to closed position, providing a visual cue and improved safety.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • TFE seats and washers provide excellent corrosion resistance, providing the correct material for the application.
  • A wide variety of GYROLOK end fittings or pipe fittings provide the correct fitting option for the application.
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeBall
MaterialSS316
Working Pressure500 PSI
End Connection Type 1GYROLOK
End Connection Size 19.5 (3/8")
End Connection Type 2GYROLOK
End Connection Size 29.5 (3/8")
End Connection Type 3GYROLOK
End Connection Size 39.5 (3/8")

Attachments

Typical Applications

  • Instrument air lines
  • Sampling systems
  • 2-way gauge readout of line pressure
  • Manual cylinder actuation

Features and Benefits

  • Handle points to port in use or to closed position, providing a visual cue and improved safety.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • TFE seats and washers provide excellent corrosion resistance, providing the correct material for the application.
  • A wide variety of GYROLOK end fittings or pipe fittings provide the correct fitting option for the application.
  • Special High Tolerance NPT Thread
