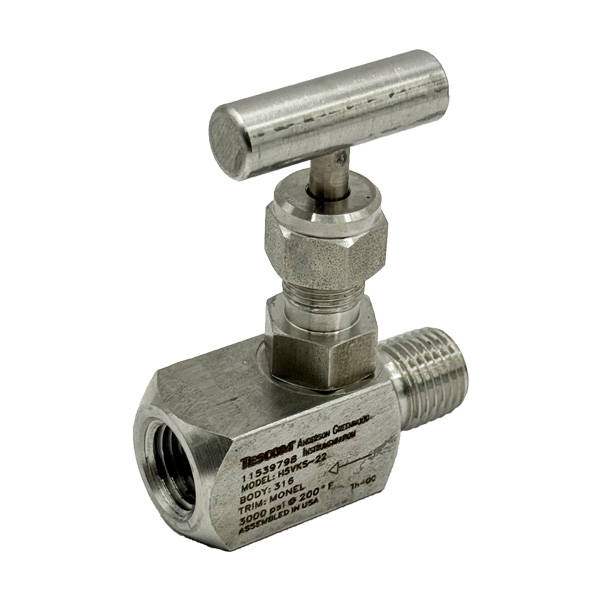

8NPT M/F 3000PSI MINI HAND VALVE SOFT SEAT TEFLON PACK PCTFE ALL 316 AGCO T2

Brand: Anderson Greenwood
Item Code: H5VKS-22-SS-T2
Delivery date: 1-2 days
A miniature isolation valve with an interchangeable hard or soft seat for pressures to 6000 psig (414 barg) The H5 mini valves facilitate safe, compact and economical installations and are excellent for straight isolation applications.
Product Files
  • Packing below threads (O-ring bonnet) prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Safety back seating prevents stem blowout or removal during operation and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • One-piece handle design prevents loss due to vibration or during maintenance.
  • Soft or metal seat for bubble-tight shutoff is field-replaceable for easy maintenance.
  • Extended valve life: damaged soft seat can be removed, leaving a metal seated valve.
Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeNPT MALE
Connection Size 26.3 (1/4")
Connection Type 2NPT FEMALE
Working Pressure3,000 PSI (207 barg)

Attachments

  • Packing below threads (O-ring bonnet) prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Safety back seating prevents stem blowout or removal during operation and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • One-piece handle design prevents loss due to vibration or during maintenance.
  • Soft or metal seat for bubble-tight shutoff is field-replaceable for easy maintenance.
  • Extended valve life: damaged soft seat can be removed, leaving a metal seated valve.
Related products
Picture of 8NPT M/F 3000PSI MINI ANGLE HAND VALVE SOFT SEAT TEFLON PACK PCTFE ALL 316 AGCO
H5VKS-22A-SS

8NPT M/F 3000PSI MINI ANGLE HAND VALVE SOFT SEAT TEFLON PACK PCTFE ALL 316 AGCO

A miniature isolation valve with an interchangeable hard or soft seat for pressures to 6000 psig (414 barg). The H5 mini valves facilitate safe, compact and economical installations and are excellent for straight isolation applications.
Picture of H5VKS-22-SS-SG-T2 8NPT M/F 3000PSI MINI SOFT SEAT PCTFE ALL 316 AGCO NACE T2
H5VKS-22-KD

H5VKS-22-SS-SG-T2 8NPT M/F 3000PSI MINI SOFT SEAT PCTFE ALL 316 AGCO NACE T2

A miniature isolation valve with an interchangeable hard or soft seat for pressures to 3000 psig (207 barg)
Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeNPT MALE
Connection Size 26.3 (1/4")
Connection Type 2NPT FEMALE
Working Pressure3,000 PSI (207 barg)
