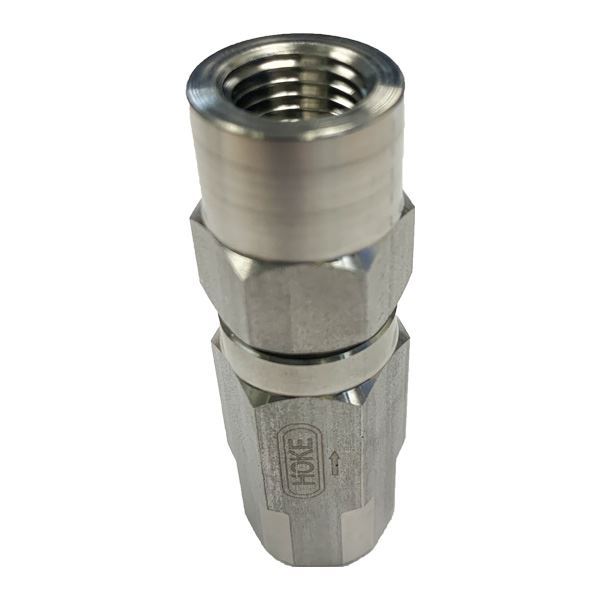

8NPT FEMALE 6000PSI BALL CHECK VALVE 316 2PSI CRACKING PRESSURE

Brand: HOKE

Item Code: 6133F4Y

Delivery date: 1-2 days

Prevents reversed flow to protect solenoids, regulators, and pumps. Locks pressure in hydraulic cylinders. Low pressure inline relief valve. Vent valve to purge a system
Technical Information

Overview
Specifications

O-ring seat provides leak-tight shutoff
Internal design guides flow around or inside spring, not through coils, when valve is open
All models are tested in production to assure a leak-tight body joint and seat
Ball and poppet designs are available as standard
Ball type provides effective leak-tight closure with minimum flow resistance
Poppet models provide large flows with a minimum of chatter and fluctuation
Valves are available with various cracking pressures, from 1/3 to 25 psig (0 to 2 bar).
2-piece body permits interchangeability of end connections
Special High Tolerance NPT Thread

Products specifications

Valve Type	Ball
Material	SS316
Working Pressure	6,000 PSI (414 barg)
Cracking Pressure	2 PSI
End Connection Type 1	NPT FEMALE
End Connection Size 1	6.3 (1/4")
End Connection Type 2	NPT FEMALE
End Connection Size 2	6.3 (1/4")

Attachments

O-ring seat provides leak-tight shutoff
Internal design guides flow around or inside spring, not through coils, when valve is open
All models are tested in production to assure a leak-tight body joint and seat
Ball and poppet designs are available as standard
Ball type provides effective leak-tight closure with minimum flow resistance
Poppet models provide large flows with a minimum of chatter and fluctuation
Valves are available with various cracking pressures, from 1/3 to 25 psig (0 to 2 bar).
2-piece body permits interchangeability of end connections
Special High Tolerance NPT Thread

Products specifications

Valve Type	Ball
Material	SS316
Working Pressure	6,000 PSI (414 barg)
Cracking Pressure	2 PSI
End Connection Type 1	NPT FEMALE
End Connection Size 1	6.3 (1/4")
End Connection Type 2	NPT FEMALE
End Connection Size 2	6.3 (1/4")
