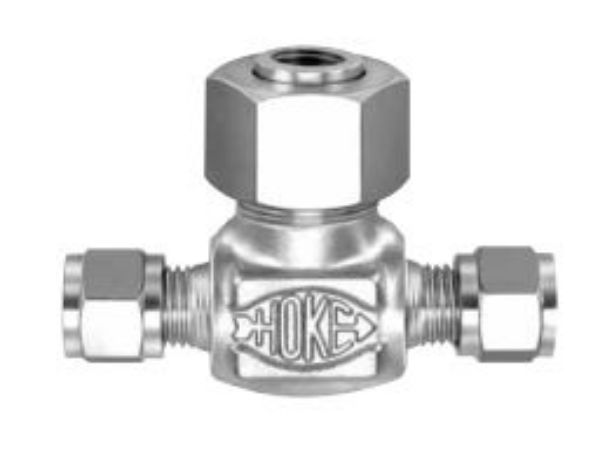

8NPT FEMALE 5000PSI MICRON FILTER REMOVABLE 316 40-55 MICRON ELEMENT

Brand: HOKE
Item Code: 6325F4Y
• Trap foreign particles • Protect sensitive equipment • System purging • Pressure damper

Choice of in-line, removable, or bypass filter models

  • NPT female and GYROLOK® tube fittingconnections
  • Variety of micron fi ltering ranges from 2 to 55μ
  • Filter elements are available in 316 stainless steel
  • Filter elements are easily replaced
  • Bypass models permit purging and sampling of process fluid
  • Bodies available in brass and 316 stainless steel
  • Special High Tolerance NPT Thread
Products specifications
Material / GradeSS316
Valve TypeFilter
Working Pressure5,000 PSI (345 barg)
End Connection Type 1NPT FEMALE
End Connection Size 16.3 (1/4")

Attachments

Choice of in-line, removable, or bypass filter models

  • NPT female and GYROLOK® tube fittingconnections
  • Variety of micron fi ltering ranges from 2 to 55μ
  • Filter elements are available in 316 stainless steel
  • Filter elements are easily replaced
  • Bypass models permit purging and sampling of process fluid
  • Bodies available in brass and 316 stainless steel
  • Special High Tolerance NPT Thread
