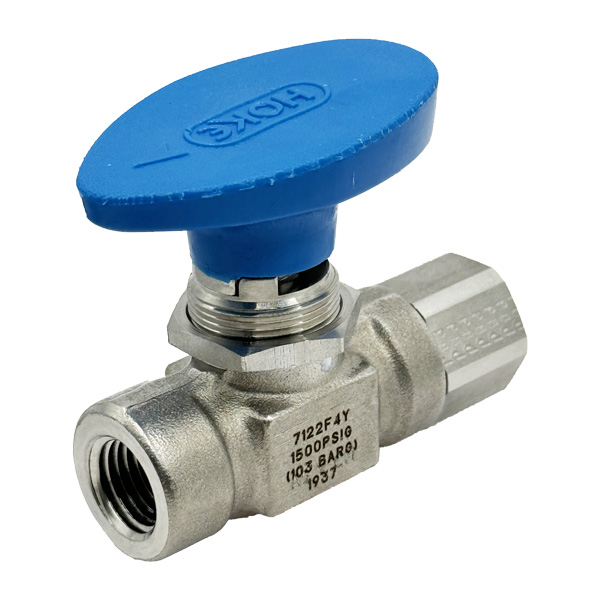

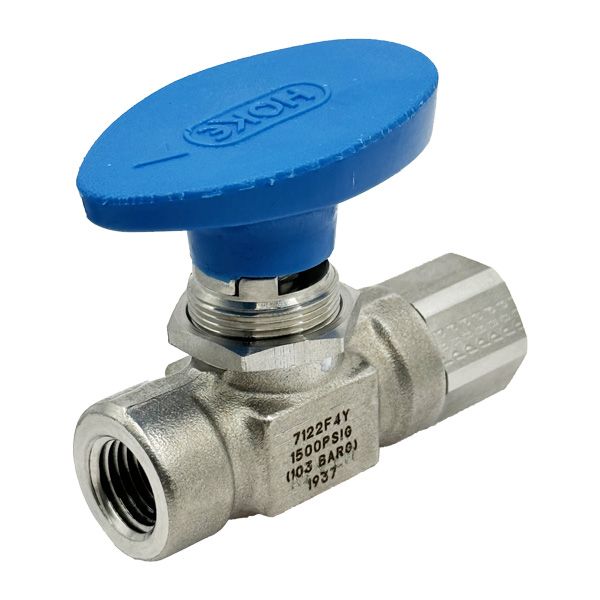

8NPT FEMALE 1500PSI BALL VALVE FORGED BODY 316 FLOMITE

Brand: HOKE
Item Code: 7122F4Y
Delivery date: 1-2 days
2-way Integral Panel Mount Ball Valves
Used for quick on-off service with a visual indication of flow, HOKE’s 2-way ball valves offer orifice sizes up to 0.25” (6.4mm). Flomite valves feature a floating ball design, encapsulated replaceable seats and check seals to ensure leak-tight service and extended service life.
Technical Information

Typical Applications

  • Instrument panels
  • High pressure instrument lines
  • Gas sampling in pilot plants
  • Full flow and shutoff in chromatographs
  • Hydraulic test stands
  • Gas sampling

Features & Benefits

  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fitting option for the application.
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeBall
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeNPT FEMALE
Working Pressure1,500 PSI (103 barg)
Connection Type 2NPT FEMALE
Connection Size 26.3 (1/4")

Attachments

Typical Applications

  • Instrument panels
  • High pressure instrument lines
  • Gas sampling in pilot plants
  • Full flow and shutoff in chromatographs
  • Hydraulic test stands
  • Gas sampling

Features & Benefits

  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fitting option for the application.
  • Special High Tolerance NPT Thread
