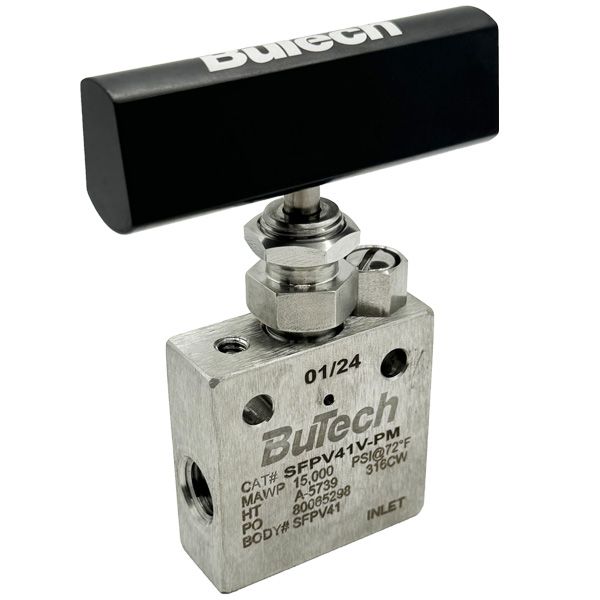

8NPT BUTECH 15,000 PSI NEEDLE VALVE 2-WAY STRAIGHT 316 V-STEM PANEL MOUNT

Brand: Butech
Item Code: SFPV41V-PM
BuTech Pipe Valves are designed for liquid and gas flow control in petroleum, chemical, power generating and general industrial applications. Available in a variety of body styles, the valves are designed for manual operation in temperatures ranging from -100° to +600°F (-73° to +315°C). Optional packings and/or extended stuffing boxes increase the range to -423° to +1200°F (-253° to +648°C). Their rugged construction provides assurance of fail-safe operation at pressures ranging to 15,000 PSI (1030 bar)
Product Files
  • Non-rotating stem prevents galling and scoring
  • Five stem styles:
    •Vee •Metering
    •Regulating •Micro-Metering
    •Soft Tip
  • 17-4PH Stem for longer service life. 316 wetted parts are also available by specifying option -316WP
  • Glass-filled teflon packing for temperatures to 600°F (315°C)
  • Integral through holes for bracket mounting. A panelmounting option is also available (see page NPT-3)
  • Wide range of options allow customizing of valve
Products specifications
Material / GradeSS316
Valve TypeHand & Needle
Working Pressure15,000 PSI (1,030 barg)
End Connection Type 1NPT FEMALE
End Connection Size 16.3 (1/4")
End Connection Type 2NPT FEMALE
End Connection Size 26.3 (1/4")

Attachments

  • Non-rotating stem prevents galling and scoring
  • Five stem styles:
    •Vee •Metering
    •Regulating •Micro-Metering
    •Soft Tip
  • 17-4PH Stem for longer service life. 316 wetted parts are also available by specifying option -316WP
  • Glass-filled teflon packing for temperatures to 600°F (315°C)
  • Integral through holes for bracket mounting. A panelmounting option is also available (see page NPT-3)
  • Wide range of options allow customizing of valve
