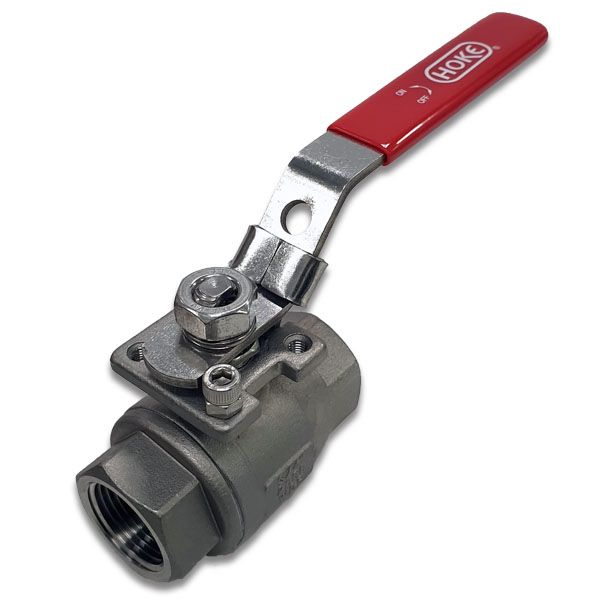

8NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT PAD ALL CF8M BODY & TRIM

Brand: HOKE
Item Code: 7510F4Y-RH-FTAX
Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
Product Files

• All 316 wetted and non wetted components
• Full Port
• 2-piece body
• Investment cast CF8M
• Anti-blowout stem
• Locking SS handle
• Adjustable stem packing
• Actuator mounting pad to ISO 5211
• Seat material Reinforced TFE
• High Tolerance NPT Thread Specification
• Basic design complies with ANSI B16.34 & EN 12516-1
• Tested according to API 598
• 3.1 Inspection Certification – Material & Pressure Testing (Shell & Seat)

Products specifications
Valve TypeBall
Connection TypeNPT FEMALE
Connection Size6.3 (1/4")
Working Pressure2000WOG
Valve Body2-PIECE
MaterialSS316
Valve BoreFULL PORT

Attachments

• All 316 wetted and non wetted components
• Full Port
• 2-piece body
• Investment cast CF8M
• Anti-blowout stem
• Locking SS handle
• Adjustable stem packing
• Actuator mounting pad to ISO 5211
• Seat material Reinforced TFE
• High Tolerance NPT Thread Specification
• Basic design complies with ANSI B16.34 & EN 12516-1
• Tested according to API 598
• 3.1 Inspection Certification – Material & Pressure Testing (Shell & Seat)
