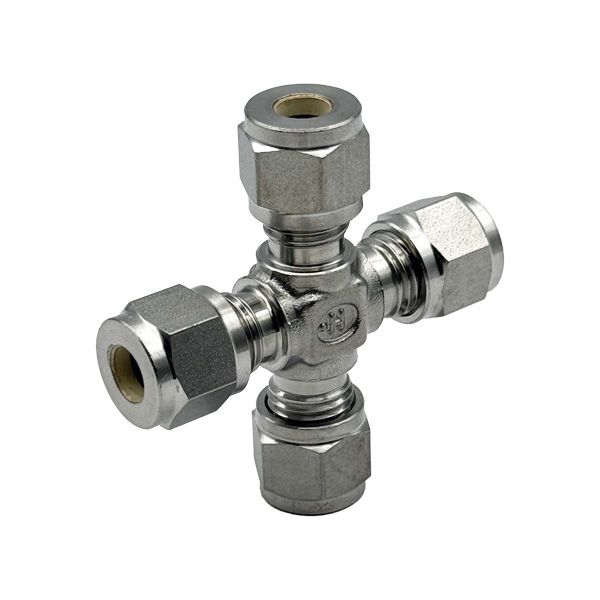

6.3MM OD TUBE CROSS GYROLOK 316

Brand: Gyrolok - Crane
Item Code: 4C-316
Delivery date: 1-2 days
connects 6.3mm (1/8" OD) fractional tubes
Technical Information
Product Files
Products specifications
End Connection Size 16.3 (1/4")
End Connection Size 26.3 (1/4")
End Connection Size 36.3 (1/4")
End Connection Size 46.3 (1/4")
End Connection Type 1GYROLOK
End Connection Type 2GYROLOK
End Connection Type 3GYROLOK
End Connection Type 4GYROLOK
Material / GradeSS316
Fitting TypeCROSS
