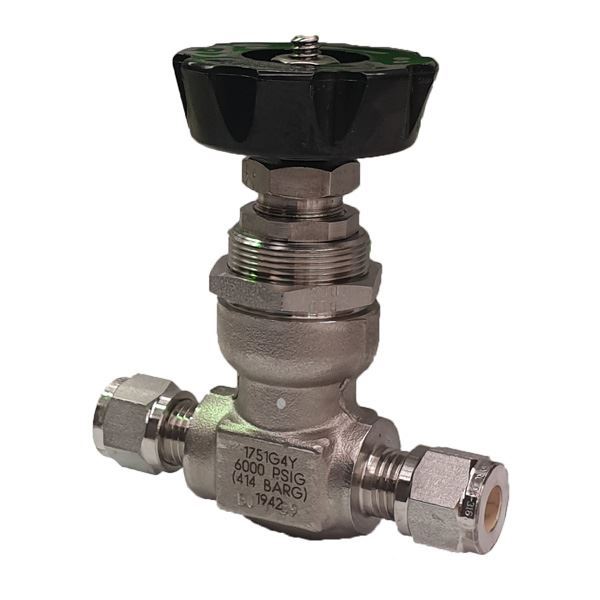

6.3OD TUBE 6000PSI NEEDLE VALVE FORGED BODY 316 NON ROTATING STEM

Brands: HOKE , Gyrolok - Crane
Item Code: 1751G4Y
Delivery date: 1-2 days
1700 Series - Forged Body, Integral Bonnet Needle Valve
These affordable valves are suited for a wide variety of process control applications. Non-rotating stainless steel or replaceable PCTFE stem tips reduce galling. Dyna-Pak packing below the stem threads prevents fugitive emissions.
Technical Information

Typical Applications

  • Cylinder valves
  • Panel board instrumentation
  • Pressure gauge valves
  • Sampling systems
  • Research laboratories
  • Oxygen service
  • Corrosive or high pressure service

Safety

  • Lock nut secures packing nut to prohibit accidental removal


Long cycle life

  • Packing below stem threads prevents fluid from contacting the stem threads
  • Non-rotating hardened 17-4PH stainless steel, Monel or replaceable PCTFE stem tip is combined with a hardened 450 stainless steel - or Monel thread gland to reduce galling


Helps eliminate fugitive emissions

  • Dyna-Pak packing provides a leak-tight seal with low operating torque


Reliability

  • All valves are tested for bubble-tight leakage at both seat and packing


Installation variety

  • Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections


Panel mounting

  • Panel mounting is standard on all models
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeGYROLOK
Connection Size 26.3 (1/4")
Connection Type 2GYROLOK
Working Pressure6,000 PSI (414 barg)

Attachments

Typical Applications

  • Cylinder valves
  • Panel board instrumentation
  • Pressure gauge valves
  • Sampling systems
  • Research laboratories
  • Oxygen service
  • Corrosive or high pressure service

Safety

  • Lock nut secures packing nut to prohibit accidental removal


Long cycle life

  • Packing below stem threads prevents fluid from contacting the stem threads
  • Non-rotating hardened 17-4PH stainless steel, Monel or replaceable PCTFE stem tip is combined with a hardened 450 stainless steel - or Monel thread gland to reduce galling


Helps eliminate fugitive emissions

  • Dyna-Pak packing provides a leak-tight seal with low operating torque


Reliability

  • All valves are tested for bubble-tight leakage at both seat and packing


Installation variety

  • Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections


Panel mounting

  • Panel mounting is standard on all models
  • Special High Tolerance NPT Thread
