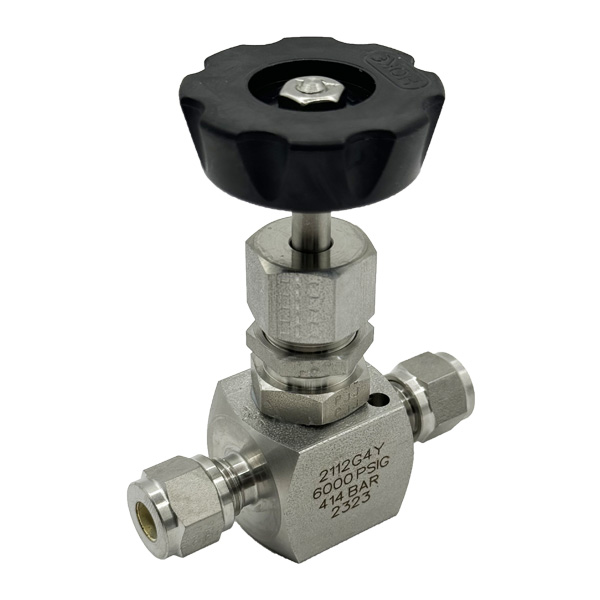

6.3OD TUBE 6000PSI NEEDLE VALVE BAR STOCK 316 METAL STEM

Brands: HOKE , Gyrolok - Crane
Item Code: 2112G4Y
Delivery date: 1-2 days
2100 Series - Bar Stock, Screwed Bonnet Needle Valve
This panel mountable, two-piece design is available in globe and angle patterns for flexibility of installation. Dyna-Pak packing provides leak-tight sealing with low operating torque. Optional Graph-Lock packing is available for high-temperature applications. The safety back-seating prevents accidental removal of the stem.
Technical Information

Typical Applications

  • Hydraulic systems
  • High temperature service to +600° F (+316° C)
  • Gas sampling
  • Test stands

Safety

  • Back seating provides added sealing protection
  • Lock pin prevents accidental bonnet disengagement


High pressure capability

  • 316 stainless steel valve maximum working pressure is 6000 psig (414 Bar)


Extended temperature range

  • Choice of Dyna-Pak packing or high temperature Graph-Lock packing


Versatile

  • Choice of regulating stem tip or metal stem with nonrotating replaceable PCTFE stem tip, with a variety of end connections


Reliability

  • All valves are tested for bubble-tight leakage at both seat and packing


Panel mounting

  • Panel mounting is standard on all models
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeGYROLOK
Connection Size 26.3 (1/4")
Connection Type 2GYROLOK
Working Pressure6,000 PSI (414 barg)

Attachments

Typical Applications

  • Hydraulic systems
  • High temperature service to +600° F (+316° C)
  • Gas sampling
  • Test stands

Safety

  • Back seating provides added sealing protection
  • Lock pin prevents accidental bonnet disengagement


High pressure capability

  • 316 stainless steel valve maximum working pressure is 6000 psig (414 Bar)


Extended temperature range

  • Choice of Dyna-Pak packing or high temperature Graph-Lock packing


Versatile

  • Choice of regulating stem tip or metal stem with nonrotating replaceable PCTFE stem tip, with a variety of end connections


Reliability

  • All valves are tested for bubble-tight leakage at both seat and packing


Panel mounting

  • Panel mounting is standard on all models
  • Special High Tolerance NPT Thread
