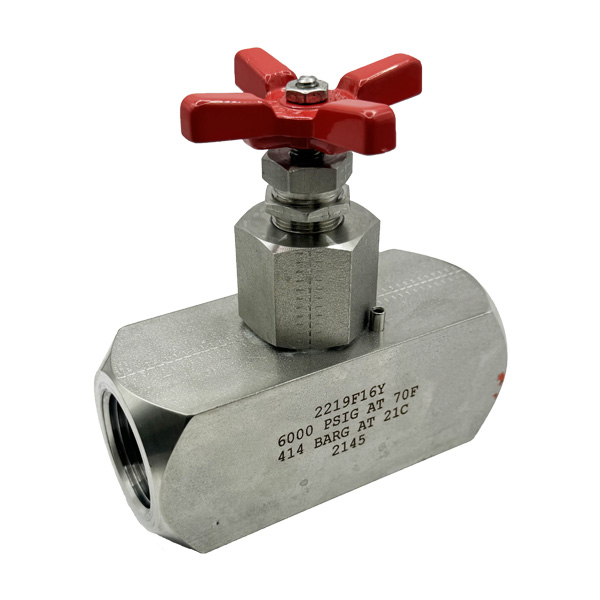

25NPT FEMALE 6000PSI NEEDLE VALVE SEVERE SERVICE 316 HOKE

Brand: HOKE
Item Code: 2219F16Y
2219 Series - Severe Service Needle Valve
The new Hoke 2219 Needle Valve is an excellent choice for many steam and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The non-rotating 316 stainless steel stem tip prevents galling.
Technical Information
Product Files
  • Meets ANSI 900# specifications
  • Grafoil packing below threads isolates threads from media.
  • Non-rotating 316 stainless steel stem tip prevents galling
  • High pressure / high temperature use

All standard components are 316 stainless steel

  • Standard 316 stainless steel cast handle
  • Fractional end connections available up to 1”; metric end connections up to 25 mm
  • Gyrolok, female NPT, NPS-, or tube socket weld end connections
  • Bubble-tight leak testing at both seat and packing
  • Special High Tolerance NPT Thread

Typical Applications

  • Steam service in power plants
  • Hot condensates
Products specifications
Material / GradeSS316
Valve TypeHand & Needle
Working Pressure6,000 PSI (414 barg)
End Connection Type 1NPT FEMALE
End Connection Size 125.4 (1")
End Connection Type 2NPT FEMALE
End Connection Size 225.4 (1")

Attachments

  • Meets ANSI 900# specifications
  • Grafoil packing below threads isolates threads from media.
  • Non-rotating 316 stainless steel stem tip prevents galling
  • High pressure / high temperature use

All standard components are 316 stainless steel

  • Standard 316 stainless steel cast handle
  • Fractional end connections available up to 1”; metric end connections up to 25 mm
  • Gyrolok, female NPT, NPS-, or tube socket weld end connections
  • Bubble-tight leak testing at both seat and packing
  • Special High Tolerance NPT Thread

Typical Applications

  • Steam service in power plants
  • Hot condensates
