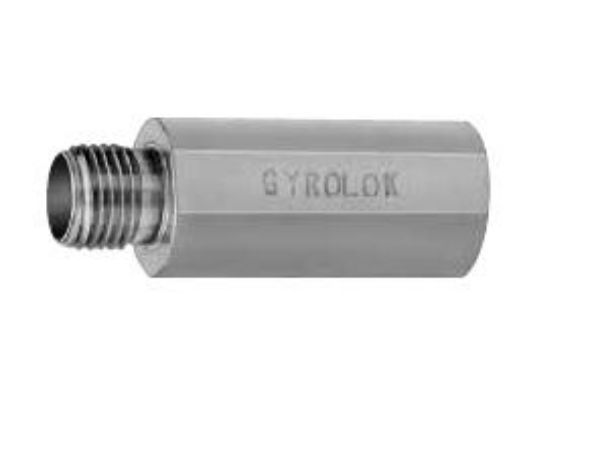

25.4MM HOKE PRE-SETTING TOOL

Brands: Gyrolok - Crane , HOKE
Item Code: 16PST
Used strictly for pre-assembling ferrules to tubing.
Threads of pre-setting tools should be lubricated the very first time and relubricated every tenth time thereafter.
Technical Information

Instructions

  1. Place PST in vise.
  2. Loosely assemble nut and ferrules to PSI. Use HOKE Gyrolok Safety Changer Nut & Ferrule Sets.
  3. Follow standard HOKE Gyrolok assembly instructions to set ferrules onto tubing, see page 53.
  4. Loosen nut and remove tubing with pre-set ferrules and nut.
  5. With pre-set ferrules and nut in permanent location, reassemble tubing by HOKE Gyrolok reassembly instructions.
Products specifications
End Connection Type 1TUBE
End Connection Size 125.4 (1")
