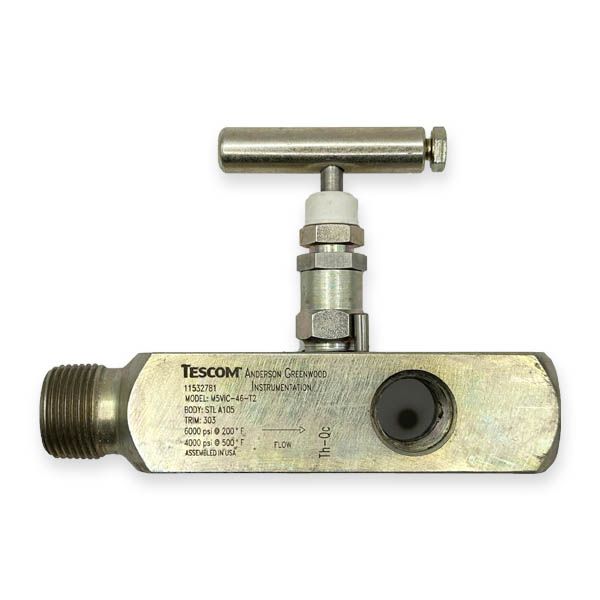

20X15NPT M/F 6000PSI MULTIPORT GAUGE VALVE TEFLON PACK HARD SEAT CARBON STEEL AGCO T2

Item Code: M5VIC-46-T2

M5 valves allow for versatile vertical or horizontal installation positioning of gauges or pressure switches without requiring additional penetration of the main piping. Compact, lightweight multi-port valves for pressures up to 6,000 psig (414 barg) or 10,000 psig (690 barg).

Product Files

AGCO

M5-M51 MultiPort Gauge Valves

Overview
Specifications

Cost savings through minimized components and process penetrations for multiple instrument installations with reduced possible leak points.
Compact design minimizes space requirements; low weight improves connection strength and reduces gauge whip.
Long body option allows up to 4” (102 mm) pipe insulation.
Replaceable soft seat and can operate in dirty service with repetitive bubble-tight shutoff.
Repairable integral metal seat can be resurfaced without removing the valve from the line.
Ball end stem eliminates seat galling, provides buble-tight shutoff and long life. Hardened,non-rotating ball ensures perfect alignment closure.
Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates stem galling.
Easily adjustable packing decreases replacement down time and increases valve life.
Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
ENC plated 316 SS stem prevents galling or freezing of stem threads.
Rolled stem, bonnet and male NPT threads provide additional strength.
Mirror stem finish in the packing area enables smooth operation and extends packing life.
Metal-to-metal body-to-bonnet seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile breakage and gives a reliable bonnet to body seal point.

Products specifications

Material / Grade	Carbon Steel
Valve Type	Gauge
End Connection Type 1	NPT MALE
End Connection Size 1	19.1 (3/4")
End Connection Type 2	NPT FEMALE
End Connection Size 2	12.7 (1/2")
Working Pressure	6,000 PSI (414 barg)

Attachments

Cost savings through minimized components and process penetrations for multiple instrument installations with reduced possible leak points.
Compact design minimizes space requirements; low weight improves connection strength and reduces gauge whip.
Long body option allows up to 4” (102 mm) pipe insulation.
Replaceable soft seat and can operate in dirty service with repetitive bubble-tight shutoff.
Repairable integral metal seat can be resurfaced without removing the valve from the line.
Ball end stem eliminates seat galling, provides buble-tight shutoff and long life. Hardened,non-rotating ball ensures perfect alignment closure.
Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates stem galling.
Easily adjustable packing decreases replacement down time and increases valve life.
Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
ENC plated 316 SS stem prevents galling or freezing of stem threads.
Rolled stem, bonnet and male NPT threads provide additional strength.
Mirror stem finish in the packing area enables smooth operation and extends packing life.
Metal-to-metal body-to-bonnet seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile breakage and gives a reliable bonnet to body seal point.

Products specifications

Material / Grade	Carbon Steel
Valve Type	Gauge
End Connection Type 1	NPT MALE
End Connection Size 1	19.1 (3/4")
End Connection Type 2	NPT FEMALE
End Connection Size 2	12.7 (1/2")
Working Pressure	6,000 PSI (414 barg)
