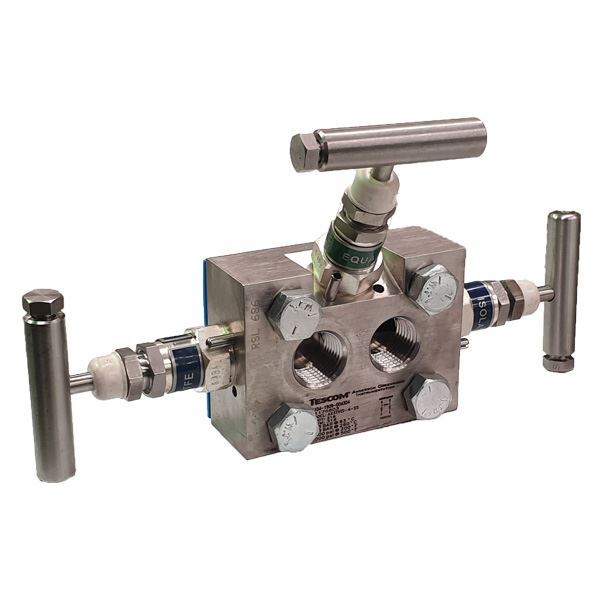

15NPT X FLANGE 6000PSI 3-VALVE DIRECT DP MANIFOLD TEFLON PACK HARD SEAT ALL 316 AGCO

Item Code: AX3TVIS-4-SS

Delivery date: 1-2 days

The AX3A and AX3T are three-valve manifolds that enable instrument operation, isolation and zeroing in a single unit and are suitable for liquid or vapor service.

Overview
Specifications

Features

Direct mounting compact design requires minimum space for operation and installation with fewer potential leak points.
Cost savings when manifolding the valves by eliminating several parts used in conventional methods of ‘piping up’.
Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
Back seat stem prevents blowout or accidental removal while in operation.
Standard pipe bracket bolts directly to the manifold providing a rigid support for the transmitter. Instrument can be removed easily for service or repair.

Products specifications

Valve Type	Manifold
Material	SS316
Connection Size	12.7 (1/2")
Connection Type	NPT FEMALE
Connection Size 2	12.7 (1/2")
Connection Type 2	NPT FEMALE
Working Pressure	6,000 PSI (414 barg)

Attachments

Features

Direct mounting compact design requires minimum space for operation and installation with fewer potential leak points.
Cost savings when manifolding the valves by eliminating several parts used in conventional methods of ‘piping up’.
Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
Back seat stem prevents blowout or accidental removal while in operation.
Standard pipe bracket bolts directly to the manifold providing a rigid support for the transmitter. Instrument can be removed easily for service or repair.

Products specifications

Valve Type	Manifold
Material	SS316
Connection Size	12.7 (1/2")
Connection Type	NPT FEMALE
Connection Size 2	12.7 (1/2")
Connection Type 2	NPT FEMALE
Working Pressure	6,000 PSI (414 barg)
