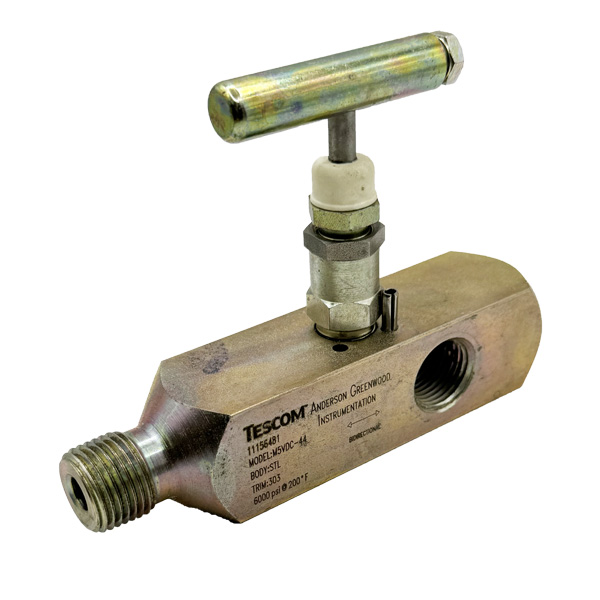

15NPT M/F 6000PSI MULTIPORT GAUGE VALVE TEFLON PACK SOFT SEAT DELRIN CARBON STEEL AGCO

Brand: Anderson Greenwood
Item Code: M5VDC-44
Delivery date: 1-2 days
M5 valves allow for versatile vertical or horizontal installation positioning of gauges or pressure switches without requiring additional penetration of the main piping. Compact, lightweight multi-port valves for pressures up to 6,000 psig (414 barg) or 10,000 psig (690 barg).
Product Files
AGCO
  • Cost savings through minimized components and process penetrations for multiple instrument installations with reduced possible leak points.
  • Compact design minimizes space requirements; low weight improves connection strength and reduces gauge whip.
  • Long body option allows up to 4” (102 mm) pipe insulation.
  • Replaceable soft seat and can operate in dirty service with repetitive bubble-tight shutoff.
  • Repairable integral metal seat can be resurfaced without removing the valve from the line.
  • Ball end stem eliminates seat galling, provides buble-tight shutoff and long life. Hardened,non-rotating ball ensures perfect alignment closure.
  • Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates stem galling.
  • Easily adjustable packing decreases replacement down time and increases valve life.
  • Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS stem prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • Metal-to-metal body-to-bonnet seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile breakage and gives a reliable bonnet to body seal point.
Products specifications
Valve TypeGauge
MaterialCarbon Steel
Connection Size12.7 (1/2")
Connection TypeNPT MALE
Working Pressure6,000 PSI (414 barg)
Connection Type 2NPT FEMALE
Connection Size 212.7 (1/2")
