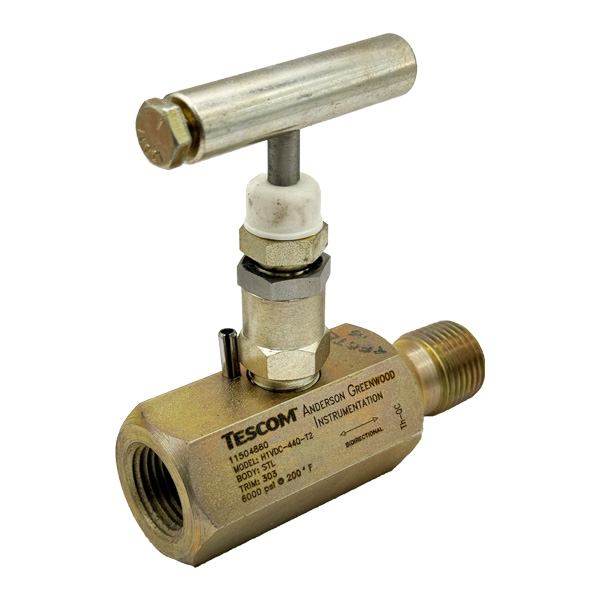

15NPT M/F 6000PSI HAND VALVE SOFT SEAT 4.8MM ORIF TEFLON DELRIN CS AGCO T2 L1+1/4

Brand: Anderson Greenwood
Item Code: H1VDC-44Q-T2
Designed for maximum system reliability, these valves are built for reliable, bubble-tight service with a variety of end connections, seat materials and stem packing, in 316 SS or CS and are available to meet NACE requirements
Product Files
  • Soft seat replaceable valve operates in dirty service with repetitive bubble-tight shutoff.
  • Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable PTFE packing decreases replacement downtime and increases valve life.
  • Dust cover protects stem from lubricant contamination.
  • Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS stem prevents galling or freezing of stem threads. CS valves use a 303 SS stem for 'hard-to-soft' contact, to prevent galling.
  • Rolled stem and bonnet threads provide additional strength.
  • Mirror stem finish in the packing area provides smooth operation and extends packing life.
  • Straight-through flow path means high flow capacity, bi-directional flow and rodding capabilities.
  • Metal-to-metal body-to-bonnet seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile
Products specifications
Material / GradeCarbon Steel
Valve TypeHand & Needle
Working Pressure6,000 PSI (414 barg)
End Connection Type 1NPT MALE
End Connection Size 112.7 (1/2")
End Connection Type 2NPT FEMALE
Connection Size12.7 (1/2")
