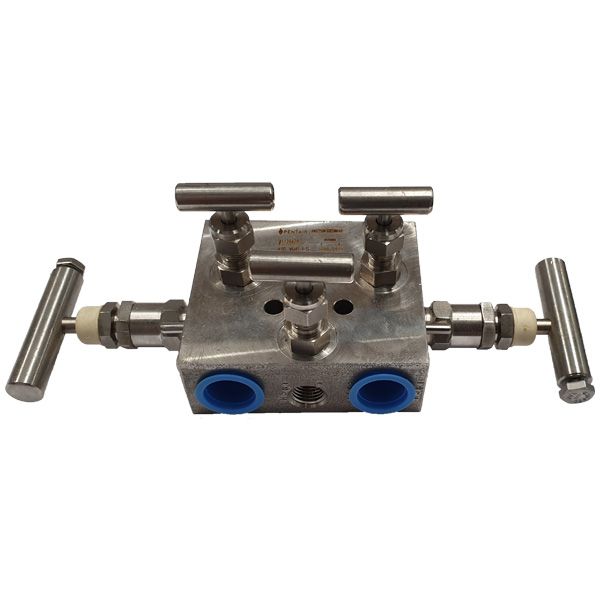

15NPT FXF 6000PSI 5-VALVE REMOTE DP NG MANIFOLD TEFLON PACK HARD SEAT ALL 316 AGCO T2

Item Code: M6AVIS-4-SS-T2

Five valve manifolds with a 3/16” (4.8mm) orifice for differential pressure natural gas services to 6000 psig (414 barg)

Easy Installation in meter tubing with no additional support generally required.
Upstream or downstream ¼” FNPT ports for connecting the static pressure to the meter.
Hard or field-replaceable soft seats for bubble-tight performance in abrasive applications.
Bonnet-to-body and stem threads isolated from process corrosion - important in sour gas applications.
Stem backout prevention eliminates accidental removal while under pressure.
FKM O-ring with PTFE back-up ring standard stem packing with long life assured by mirror finish stem in the packing area.
Integral hard back seat forms a secondary seal for the stem threads when valve is fully opened.
Rolled stem threads increase strength and extend life.

Products specifications

Material / Grade	SS316
Valve Type	Manifold

Easy Installation in meter tubing with no additional support generally required.
Upstream or downstream ¼” FNPT ports for connecting the static pressure to the meter.
Hard or field-replaceable soft seats for bubble-tight performance in abrasive applications.
Bonnet-to-body and stem threads isolated from process corrosion - important in sour gas applications.
Stem backout prevention eliminates accidental removal while under pressure.
FKM O-ring with PTFE back-up ring standard stem packing with long life assured by mirror finish stem in the packing area.
Integral hard back seat forms a secondary seal for the stem threads when valve is fully opened.
Rolled stem threads increase strength and extend life.

Products specifications

Material / Grade	SS316
Valve Type	Manifold
