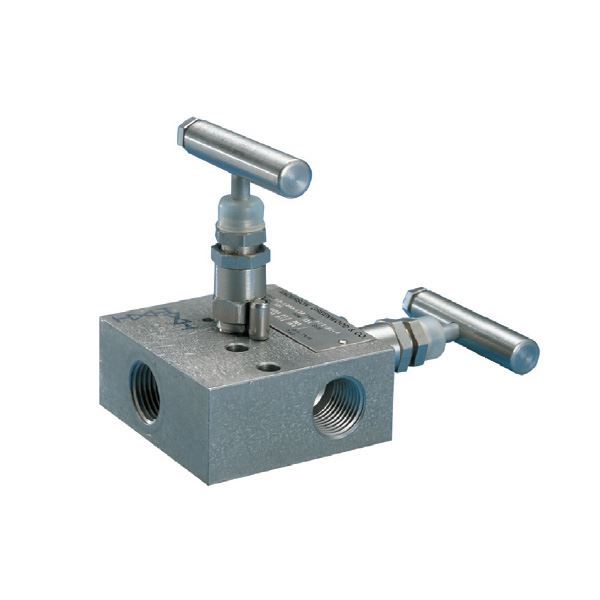

15NPT FXF 6000PSI 2-VALVE REMOTE SP MANIFOLD HARD SEAT TEFLON PACK 316 AGCO

Brand: Anderson Greenwood
Item Code: PT7VIS-4
Delivery date: 1-2 days
Two valve calibration manifolds with a choice of metal and soft seats for static pressures up to 6000 psig (414 barg).
Product Files
AGCO
  • Cost savings of 20-30% when manifolding instruments by eliminating several parts used in conventional methods of ‘piping up’.
  • Compact design requires minimum space for operation and installation.
  • Shutoff valve, tee, calibration valve and all immediate tubing/fittings available in one simple manifold.
  • PTM’s unique valve seat can be converted from soft to hard simply by removing two insert washers.
  • Stem and bonnet threads are rolled for increased strength, preventing galling and adding years to the useful life of the valve.
  • Fewer leak points reduce leakage by having fewer parts to assemble.
  • PTFE and graphite adjustable packing is easily adjusted for leak-proof, long service life.
  • PTM’s O-ring stem seal stem design isolates the stem threads from the process, preventing galling and corrosion.
  • Back seat stem prevents blowout.
Products specifications
Valve TypeManifold
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeNPT FEMALE
Working Pressure6,000 PSI (414 barg)
