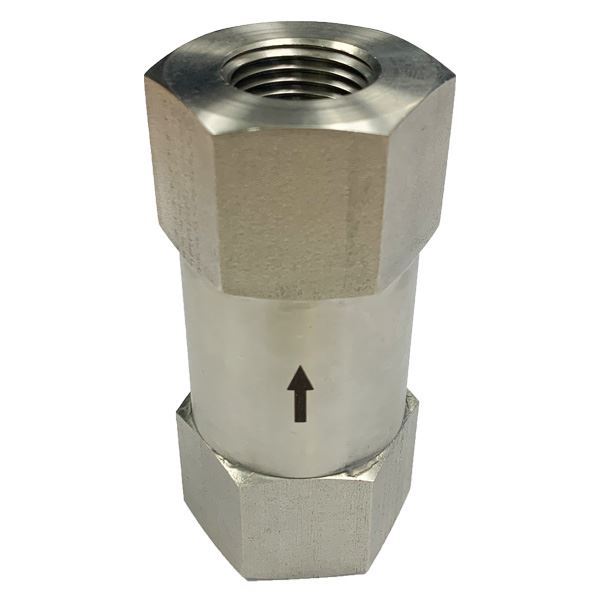

15NPT FEMALE 6000PSI POPPET CHECK VALVE 10PSI CRACKING VITON SEAT 316 HOKE

Brand: HOKE
Item Code: CVHF8Y41S
Delivery date: 1-2 days
Female NPT fractional poppet check valve
 Technical Information
  • Rapid response
  • Resilient o-ring seat provides cushioned, noise-free closing and zero leakage
  • Floating o-ring design: o-ring is continually cleaned so contaminants do not prevent sealing
  • Various materials of construction can be used with any liquid or gas service
  • Various end connections can be assembled in any system or application
  • Spring-loaded poppet can be mounted in any orientation
  • Full flow with minimal restriction for maximum Cv rates
  • Virtually maintenance free for maximum dependability
  • Pressures up to 6000 psig (414 bar)
  • Cracking pressure range is 0.5 to 20 psig (0 to 1 bar) ±10%
  • Flow up to 7.4 Cv maximum
  • Greater than 100,000 life cycles
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeCheck
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeNPT FEMALE
Working Pressure6,000 PSI (414 barg)
Cracking Pressure10 PSI

Attachments

  • Rapid response
  • Resilient o-ring seat provides cushioned, noise-free closing and zero leakage
  • Floating o-ring design: o-ring is continually cleaned so contaminants do not prevent sealing
  • Various materials of construction can be used with any liquid or gas service
  • Various end connections can be assembled in any system or application
  • Spring-loaded poppet can be mounted in any orientation
  • Full flow with minimal restriction for maximum Cv rates
  • Virtually maintenance free for maximum dependability
  • Pressures up to 6000 psig (414 bar)
  • Cracking pressure range is 0.5 to 20 psig (0 to 1 bar) ±10%
  • Flow up to 7.4 Cv maximum
  • Greater than 100,000 life cycles
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeCheck
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeNPT FEMALE
Working Pressure6,000 PSI (414 barg)
Cracking Pressure10 PSI
