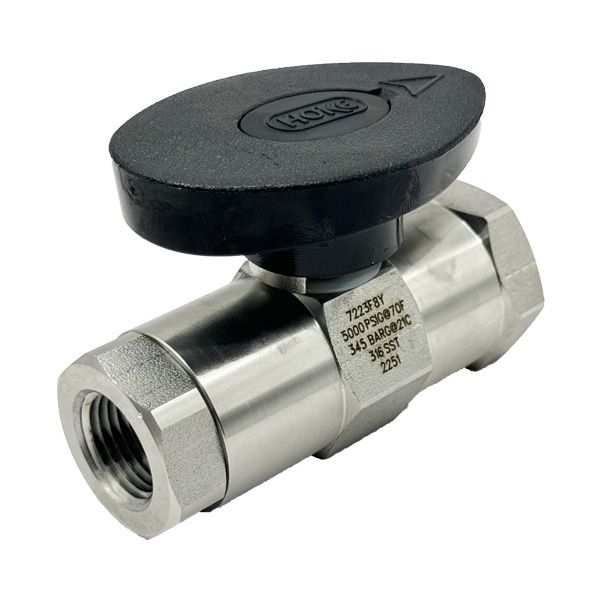

15NPT FEMALE 5000PSI BALL VALVE BAR STOCK 316 ROTOBALL LOW PROFILE

Brand: HOKE
Item Code: 7223F8Y
Delivery date: 1-2 days
2–way Low Profile Ball Valves
HOKE’s bar stock 2-way ball valves include a 0.375" (9.5 mm) orifice. Rotoball valves feature a floating ball design, encapsulated seats, and a trip-proof handle for safe, leak-tight service and long service life.
Technical Information

Typical Applications

  • Hydraulic test stands
  • Handling slurries
  • Refinery pilot plants
  • Pneumatic systems
  • Corrosives handling

Features & Benefits

  • Oval trip-proof handle helps prevent accidental actuation.
  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Blowout-proof stem for added safety
  • Dual encapsulated TFE seats and microfinished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • TFE seats with TFE or Viton washers provide excellent corrosion resistance, providing the correct material for the application.
  • A wide variety of HOKE Gyrolok end fittings and pipe fittings provide the correct fitting option for the application
  • Special High Tolerance NPT Thread
Products specifications
Valve Type Ball
Material SS316
Connection Size 12.7 (1/2")
Connection Type NPT FEMALE
Working Pressure 5,000 PSI (345 barg)
Connection Type 2 NPT FEMALE
Connection Size 2 12.7 (1/2")

Attachments

Typical Applications

  • Hydraulic test stands
  • Handling slurries
  • Refinery pilot plants
  • Pneumatic systems
  • Corrosives handling

Features & Benefits

  • Oval trip-proof handle helps prevent accidental actuation.
  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Blowout-proof stem for added safety
  • Dual encapsulated TFE seats and microfinished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • TFE seats with TFE or Viton washers provide excellent corrosion resistance, providing the correct material for the application.
  • A wide variety of HOKE Gyrolok end fittings and pipe fittings provide the correct fitting option for the application
  • Special High Tolerance NPT Thread
