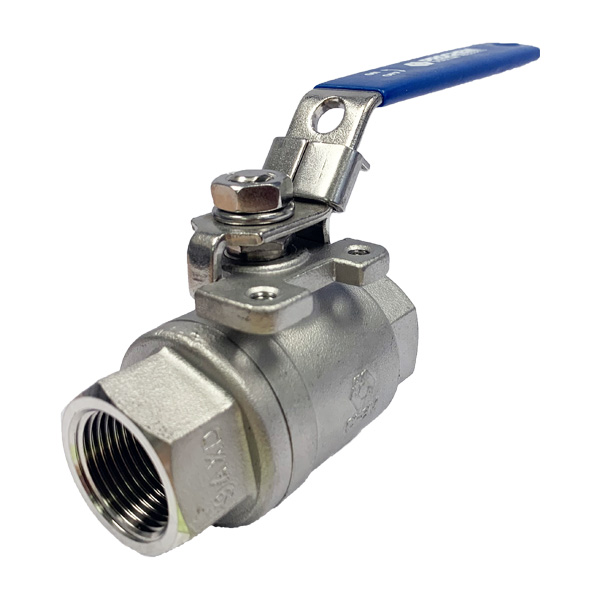

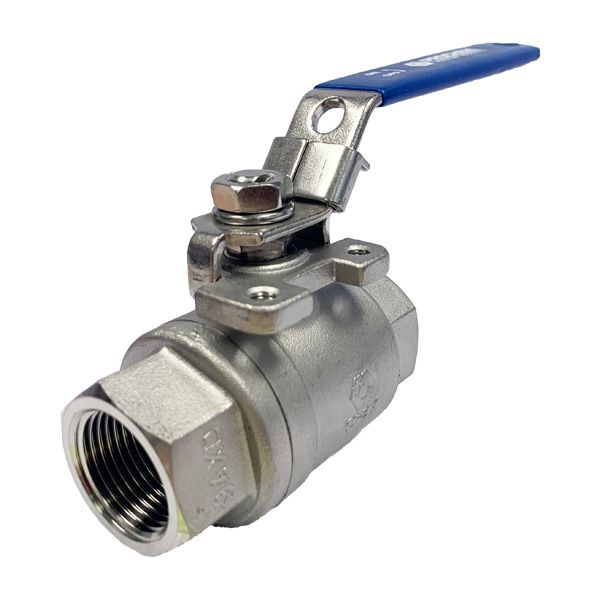

15NPT 2000WOG STANDARD PORT BALL VALVE HOKE CF8M TAPPED MOUNT PAD

Item Code: 7510F8Y
2-Piece Standard Port Ball Valve, Threaded 15NPT Ends, 2000PSI (138 Bar) W.O.G.
  • Reinforced TFE seats increase durability
  • Adjustable packing gland
  • Bottom-loaded blow-out proof stem
  • Basic design complies with ANSI B16.34 & EN 12516-1
  • High Tolerance NPT Thread Specification
  • Tested according to API 598
  • Lever Style handle with locking device
  • Part Number and Brand embossed on the body
  • Tapped Mounting Pad
Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure2000WOG
Connection TypeNPT FEMALE
Connection Size12.7 (1/2")
Valve Body2-PIECE
Valve BoreREDUCED PORT

Attachments

  • Reinforced TFE seats increase durability
  • Adjustable packing gland
  • Bottom-loaded blow-out proof stem
  • Basic design complies with ANSI B16.34 & EN 12516-1
  • High Tolerance NPT Thread Specification
  • Tested according to API 598
  • Lever Style handle with locking device
  • Part Number and Brand embossed on the body
  • Tapped Mounting Pad
