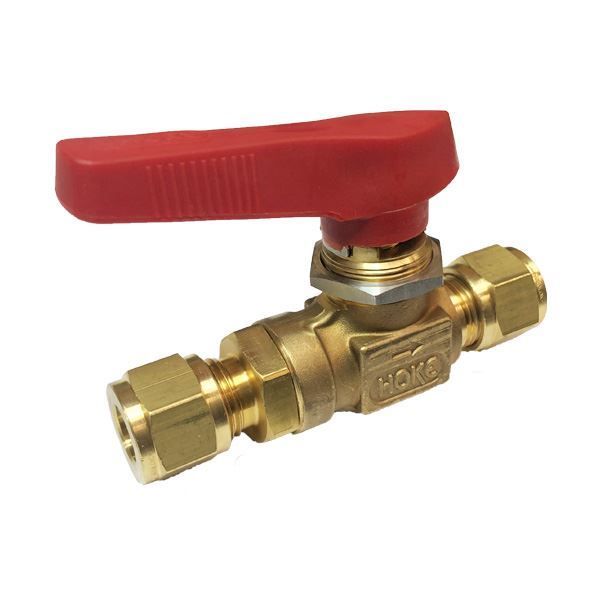

12.7OD TUBE 3000PSI BALL VALVE FORGED BODY BRASS FLOMITE

Brands: HOKE , Gyrolok - Crane
Item Code: 7115G8B
Delivery date: 1-2 days
2-way Integral Panel Mount Ball Valves
Used for quick on-off service with a visual indication of flow, HOKE’s 2-way ball valves offer orifice sizes up to 0.25” (6.4mm). Flomite valves feature a floating ball design, encapsulated replaceable seats and check seals to ensure leak-tight service and extended service life.
Technical Information

Features

  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fitting option for the application.
  • Special High Tolerance NPT Thread

Typical Applications

  • Instrument panels
  • High pressure instrument lines
  • Gas sampling in pilot plants
  • Full flow and shutoff in chromatographs
  • Hydraulic test stands
  • Gas sampling cylinders
  • Handling corrosive and viscous fluids
Products specifications
Valve TypeBall
MaterialBrass
Working Pressure3,000 PSI (207 barg)
End Connection Type 1GYROLOK
End Connection Size 112.7 (1/2")
End Connection Type 2GYROLOK
End Connection Size 212.7 (1/2")

Attachments

Features

  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fitting option for the application.
  • Special High Tolerance NPT Thread

Typical Applications

  • Instrument panels
  • High pressure instrument lines
  • Gas sampling in pilot plants
  • Full flow and shutoff in chromatographs
  • Hydraulic test stands
  • Gas sampling cylinders
  • Handling corrosive and viscous fluids
